7 Inch 800x480 Resolution RGB interface 7" LCD Display with Resistive Touch panel
Product Description
TST070WVBE-134P is is the assembly drawing of TST070WVBE-31+TSR070007 RTP is not welded on the module FPC. This 7 inch LCD display resolution is 800x480 resolution, a-si transmissive TFT LCD display, which can support RGB 24bits interface. This horizontal screen 7 "LCD display has resistive touch panel, and the capacitive touch panel is also available. Below is the details information of RTP.
RTP notes:
1. Type: Film to Glass
2. Operating Voltage: ≤10V
3. Operation Temperature: 20"C ~70°C
Storage Temperature: 30°C ~80C
4. Life Time: ≥1,000,000 times
5. Connect Material: FPC
6. Response Time: ≤10ms
7. Linearity: ≤1.5%
8. Transmittance: ≥80%
9. Surface Hardness≥3H(Pencil)
10. Operation force: 80g~ 120g
11. Resistance:
(Clear hard ITOFilm )X: 200 Q ~300 Q
(Stand ard ITOGlass)Y: 570Q ~720Q
12. Unspecifed Tolerance: +0.20
Product Paramenter
| Type | 7 Inch TFT LCD Display |
| Model Number | TST070WVBE-134P |
| Dot Matrix | 800x480 |
| Module Size | 164.90x100.00x4.4mm |
| AA mm | 153.84x85.63mm |
| Interface | RGB |
| Driver IC | EK9716+EK73002 |
| Viewing | 12 O'clock |
| Color Depth | 16.7M |
| TP/Lens | With RTP |
| Operating voltage | 3.3V |
| Operating Temperature | -20℃ to 70℃ |
| Original Place | Dongguan, CN |
| Brand Name | TSD |
| Warranty Period | 1 year |
| Supply Ability | 1500000 per month |
| Customized | FPC, CTP/RTP, logo, color , size etc |
| Payment | T/T Paypal, WU, CC etc. |

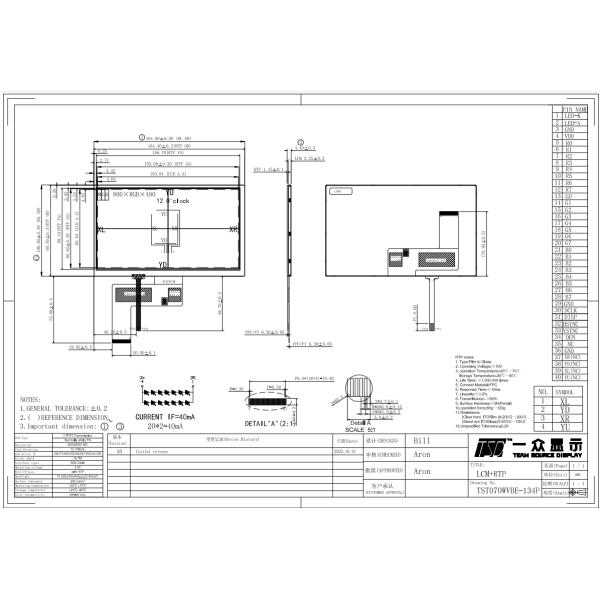

Product drawings
Company Profile
1. Company name: DongguanTeam Source Display.
2. Factory Location: Dongguan city, Guangdong Province, CN.
3. Sales office: Longgang, Shenzhen, China.
4. Industry: LCD Module industry
5. Workshop: more than 12000 square
6. Satff: About 200 people
7. Main product: 0.96-32 inch TFT LCD Module, monochrome LCD display, touch screen
8. Support Service: ODM and OEM service
9. Website: www.lcdlcm.com www.tslcd.com
10. Certification: ISO9001, ISO14001, IATF16949 and ISO13485
11. Established year: 2004
12: Overseas sales support: Italy, Netherland, Germany, etc..
Product Applications
| Smart home & white goods | thermostat, touch panel, smart coffee machine |
| Wearable device | smart watch, VR glass, translation pen |
| Handheld device | POS, PDA, handheld game consoles, handheld computers |
| Industry product | measuring equipment, control device, programmable controller PLC, touch screen, industrial computer, contactor, thermal relay |
| Medical product | handheld medical device, detectable Devices |
| Automotive product | dashboard, smart GPS, car navigator |
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the CTP?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. Can you support to customize logo in the cover glass?
A: Yes, we support customize logo, color in the cover glass.
