2.13 Inch 122x250 E Ink Display 4 Wire SPI Interface TSE0213A189

2.13 inch 122x250 4 wire SPI Interface E ink Display with SSD1680

Product Description

TSE0213A189 is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design. The 2.13” active area contains 122x250 pixels, and has 1-bit B/W full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC. SRAM.LUT, VCOM and border are supplied with each panel.

Its module outline is 329.2x59.2x1.05 mm, active area is 23.7x48.55 mm. Its storage temperature is -25 to +60 degrees Celsius, and its operating temperature is 0 to +40 degrees Celsius.

If you are very interested in E-ink display, kindly please contact us for more details.

Product Paramenter

Our Advantage:

1. Ex-factory price.
2. For new customers, we support low MOQ early.
3. Support custom colors, logos, patterns and other services.
3. One year quality assurance, if there is a quality problem, our professional engineer team and business team will solve the problem for you immediately.
4. We have cooperated with many international brands, 20 years of project experience can provide our customers with better solutions.

Product Features:

● 122x250 pixels E ink display
● High contrast
● High reflectance

● Application: electronic shelf label system
● Landscape, portrait modes
● Ultra low power consumption
● On chip display RAM
● Low voltage detect for supply voltage
● Internal temperature sensor
● Ultra wide viewing angle
● Hard-coat antiglare display surface
● Ultra Low current deep sleep mode
● Pure reflective mode
● Bi-stable display
● High voltage ready detect for driving voltage
● Commercial temperature range
● 10-byte OTP space for module identification
● Waveform stored in On-chip OTP
● Serial peripheral interface available
● On-chip oscillator
● On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
● I2C signal master interface to read external temperature sensor/built-in temperature sensor

Our Certificates:

ISO9001, ISO14001, IATF16949 and ISO13485 certification etc..

Product Applications:

Our TFT LCD display mainly use in communication equipment, consumer products, technical equipment, office automation, household appliances, automation, home appliances, automobiles, IT products, medical equipment and other fields.

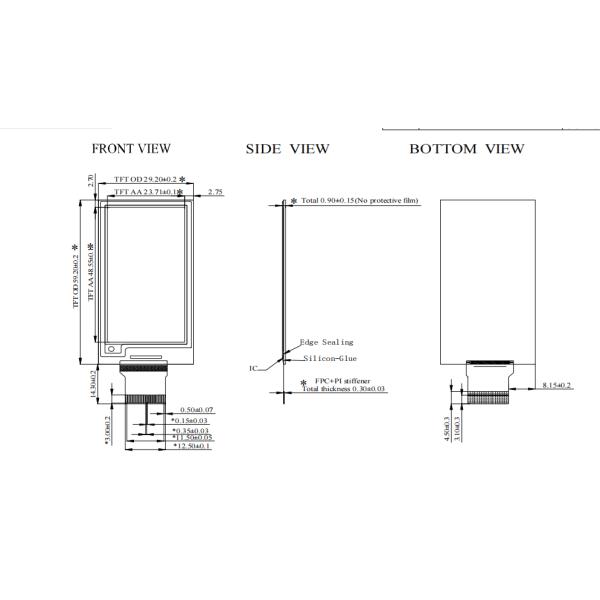

Product drawings:

FAQ

1. Are you a factory or a trading company?
We are a factory specializing in the production of LCD and E ink displays for 20 years.

2. When will the samples be shipped?
3-5 days for products in stock, 2 weeks for out of stock.

3. How to solve product quality problems?
One year quality warranty, answer your questions within 12 hours..

4. Is it FOB or EXW?
Both FOB and EXW trade terms are supported.

5. How to get the price?
Sned us your inquiry now, we will reply you quickly.

6. What are the payment terms?
We usually accept T/T, Paypal, other terms to be negotiated.

7. How to customize?
Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

8. About TSD?

Team Source Display is a LCD display manufacturer with 12000 square meter workshop. We have been specializing in LCD industry for more than 18 years, and manufacturing color TFT, capacitive & resistive touch screen, monochrome LCD/LCM.
