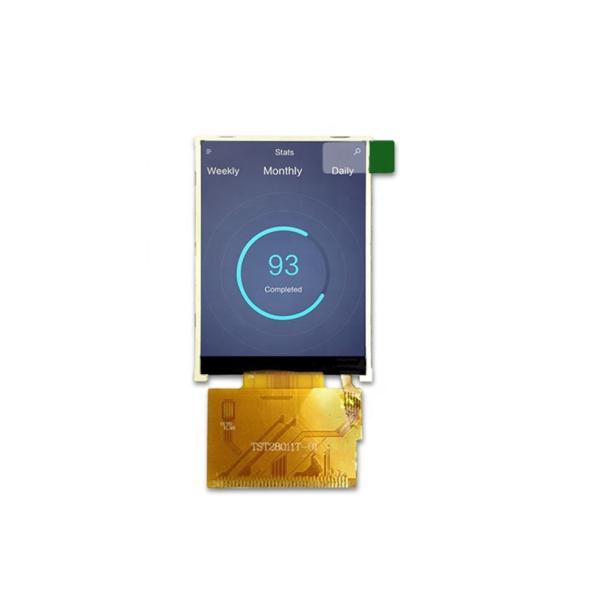

240x320 resolution 2.8 inch tft lcd ili9341 with MCU interface

Display Size : 2.8 inch

Place of Origin : Guangdong, China

Model Number : TST28QV02A

Brand Name : TSD

LCD Type : tft lcd

Part No. : TST28QV02A

Resolution : 240xRGBx320

Outline Dimension : 50.00x69.20x2.38mm

Active Area : 43.20x57.60mm

Driver IC : ILI9341V

Interface Type : MCU

Viewing Angle : 6 o'clock

Operating Temperature : -20~+70C

Storage Temperature : -30~+80C

Packaging Details : Packed in anti-static bag each, a certain quantity in one carton.

Port : Shenzhen

Supply Ability : 150000 Piece/Pieces per Month

MOQ : Negotiable

Price : Negotiable

Contact Now

240x320 resolution 2.8 inch tft lcd ili9341 with MCU interface

LCD type	tft lcd
Part No.	TST020CY-T01
Resolution	240xRGBx320 dots
Outline dimension	50.00x69.20x2.38mm
Viewing angle	6 o'clock
Drive IC	ILI9341V
Interface	MCU
Active Area	43.20x57.60mm
Operation temperature	-20℃ to +70℃
Storage temperature	-30℃ to +80℃

About us

Who is TSD?

TEAM SOURCE DISPLAY was established in 2004. Head Office located in Shenzhen, China. Factory located in Dongguan.

Our business scope cover TFT LCD display / LCM products/ Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.

Why choose us?

1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for fast support and good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.

Customers

Application

Certifications

Packing & Delivery

Related Products

FAQ

Q: What does TSD have?

A: 1)TFT

Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.

Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP

Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.

We have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive

Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
